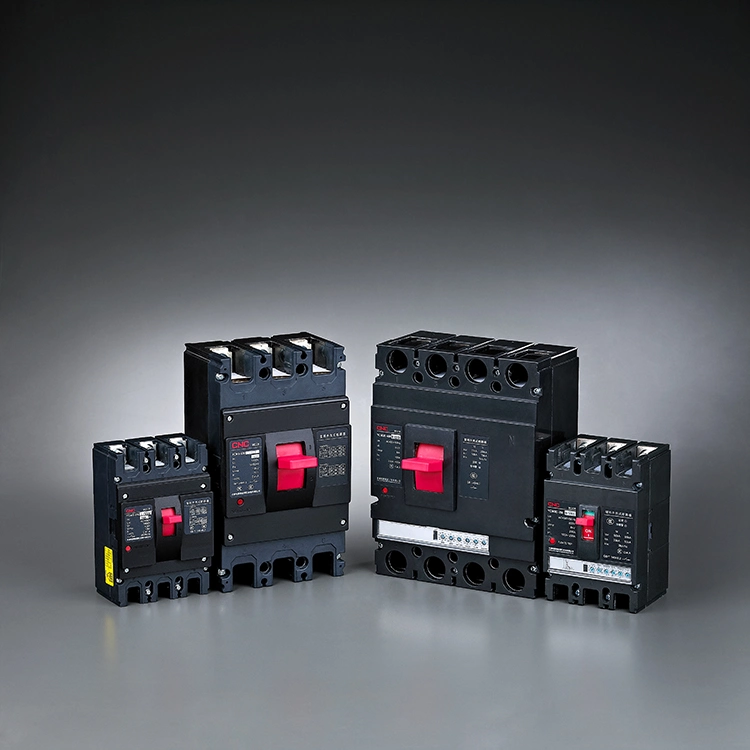

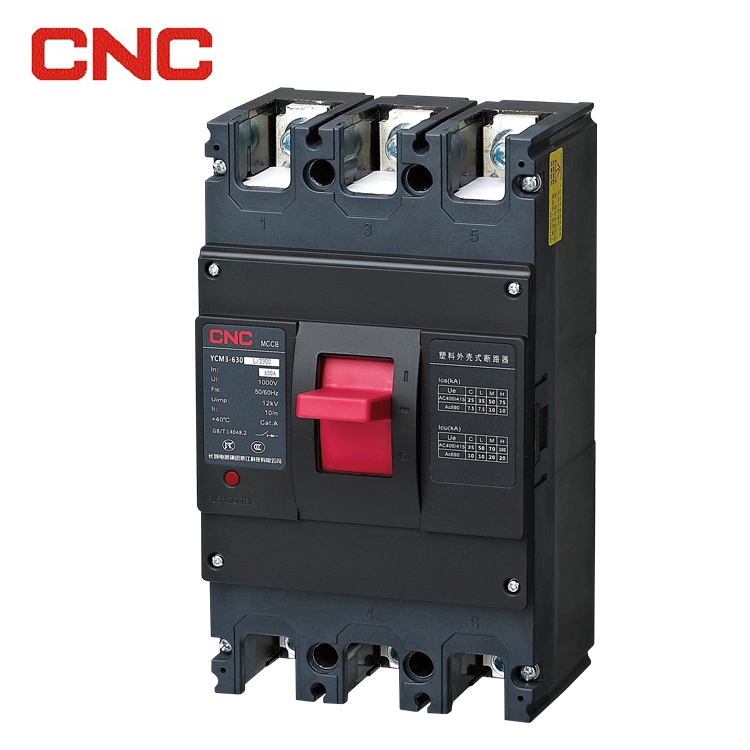

CNC YCM3-3P,4P China Manufacture MCCB Circuit Breaker
YCM3
Moulded Case Circuit Breaker
General
YCM3 series moulded case circuit breaker(herein after called circuit breaker)which adopts international advanced design and manufactural technology, small and compact, modularization, high breaking capacity, short arcing-over distance, environment protecting etc. They are applied for the power distribution network of AC 50Hz,rated working voltage 690V and below, rated current from 12.5A to 1600A,it can be used to distribute electric power and protect power equipment against overload, short circuit, undervoltage etc. The circuit breaker can change the circuit and start motor infrequently. YCM3 series circuit breaker is equiped with intelligent controllers, with the increasing selection range of setting current,power supply is more reliable, successive and safe. The YCM3 complies with standard of IEC60947-2,GB14048.2. This product have isolating function.
Application
YCM3 series of photovoltaic DC MCCB is widely used in large-scale photovoltaic power generation and distribution system, including photovoltaic junction box, photovoltaic inverters, photovoltaic DC cabinet etc.. It is used for rated voltage DC 1000V, rated current up to 250A, can quickly disconnect the DC distribution system caused by current fault to ensure the solar photovoltaic power generation system reliable operation.
| Standard | IEC60947-2 |
| Pole | 4P |
| Maxx current | 250A |
| Electrical performance | |
| Rated working voltage (Ue) | 1000V DC |
| Rated current (In) | 125A,160A,200A,250A |
| Rated insulation voltage (Ui) | 1D0OV DC |
| Rated impulse voltage (Uimp) | 8kV |
| Breaking capacity lcs(%Icu) | 1 |
| Power frequency withstand voltage| | 3.8kV/Min |
| Max breaking capacity | 20kA |
| Breaking capacity | 15kA |
| Tripping type | Thermal magnetic type |
| Operation life | |
| Mechanical life | 14000 |
| Electrical life | 5000 |
| Outline dimension (L x W x H) | 161x140x124., 257x198x106.5, 280x280x115.5 |
| Ambient temperature | -45ºC-+70ºC |
